Veritas Combination Plane - 4-Reed Blade - PM-V11

• A Veritas Combination Plane 4-Reed cutter available in sizes:
• 1/8" (3.2mm)

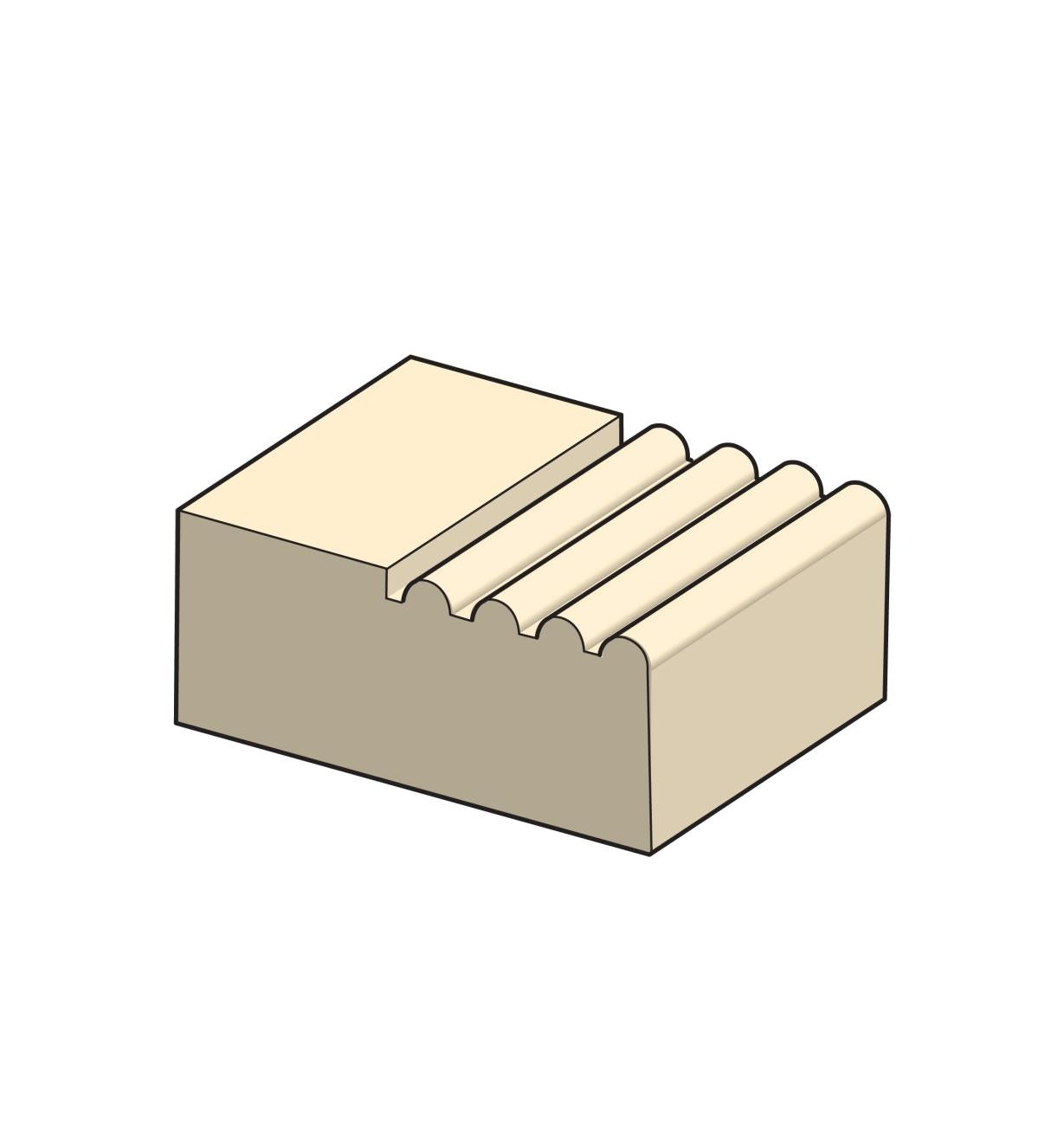

• producing quadruple 1/8" (3.2mm) wide reeds with a 1/16" (1.6mm) groove or quirk on either side of each reed.
• 3/16" (4.8mm)
• producing quadruple 3/16" (4.8mm) wide reeds with a 1/16" (1.6mm) groove or quirk on either side of each reed.

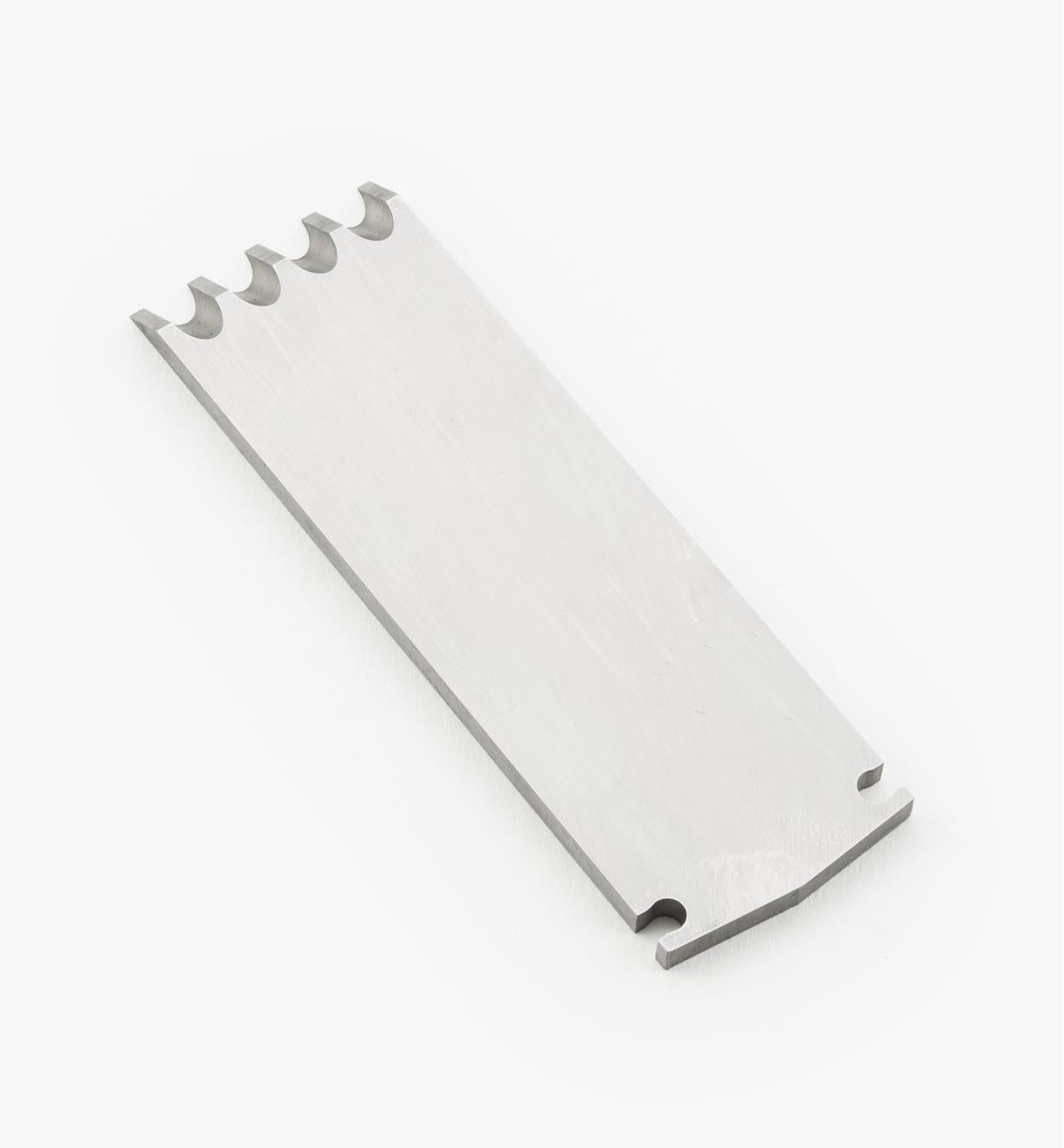

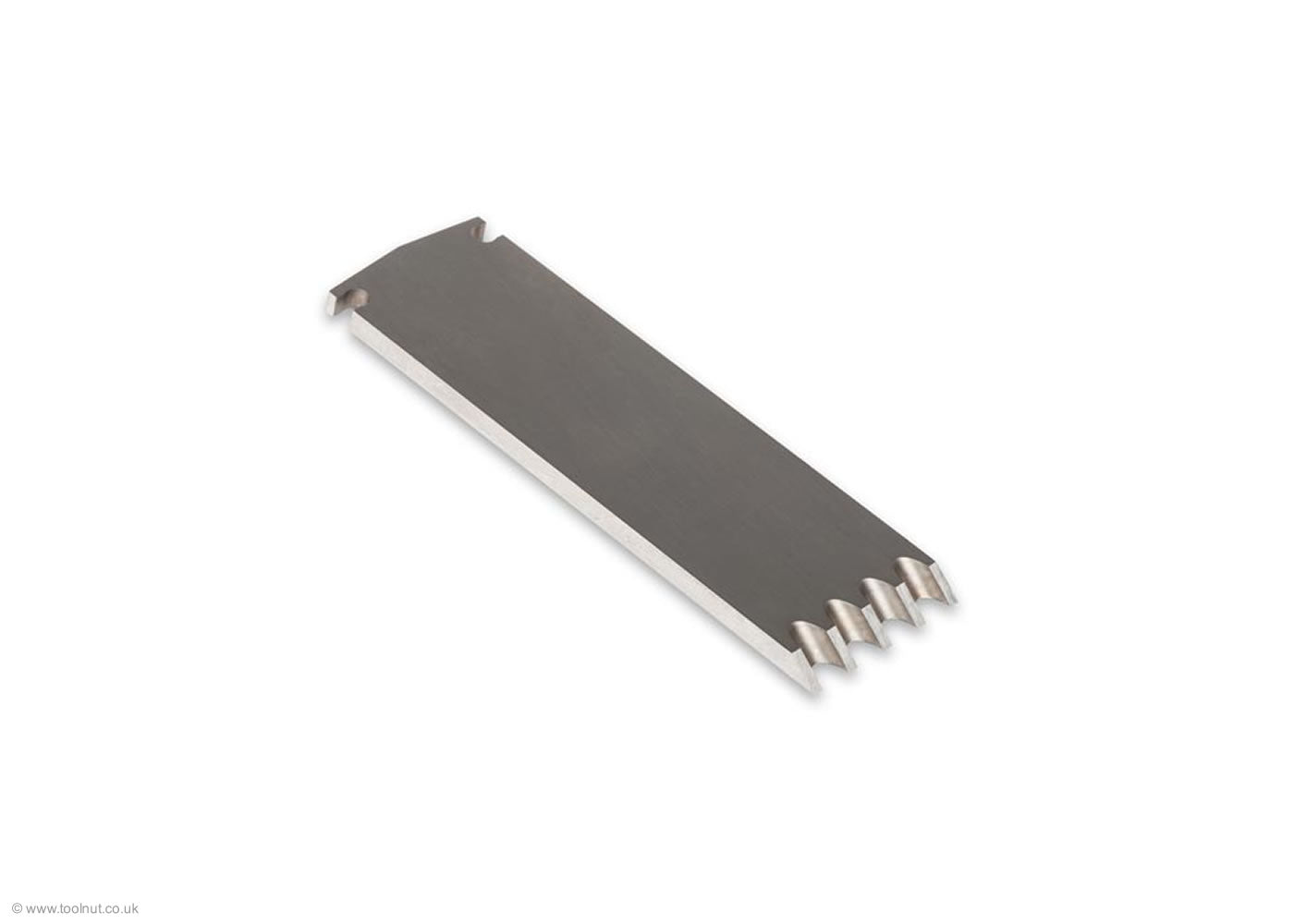

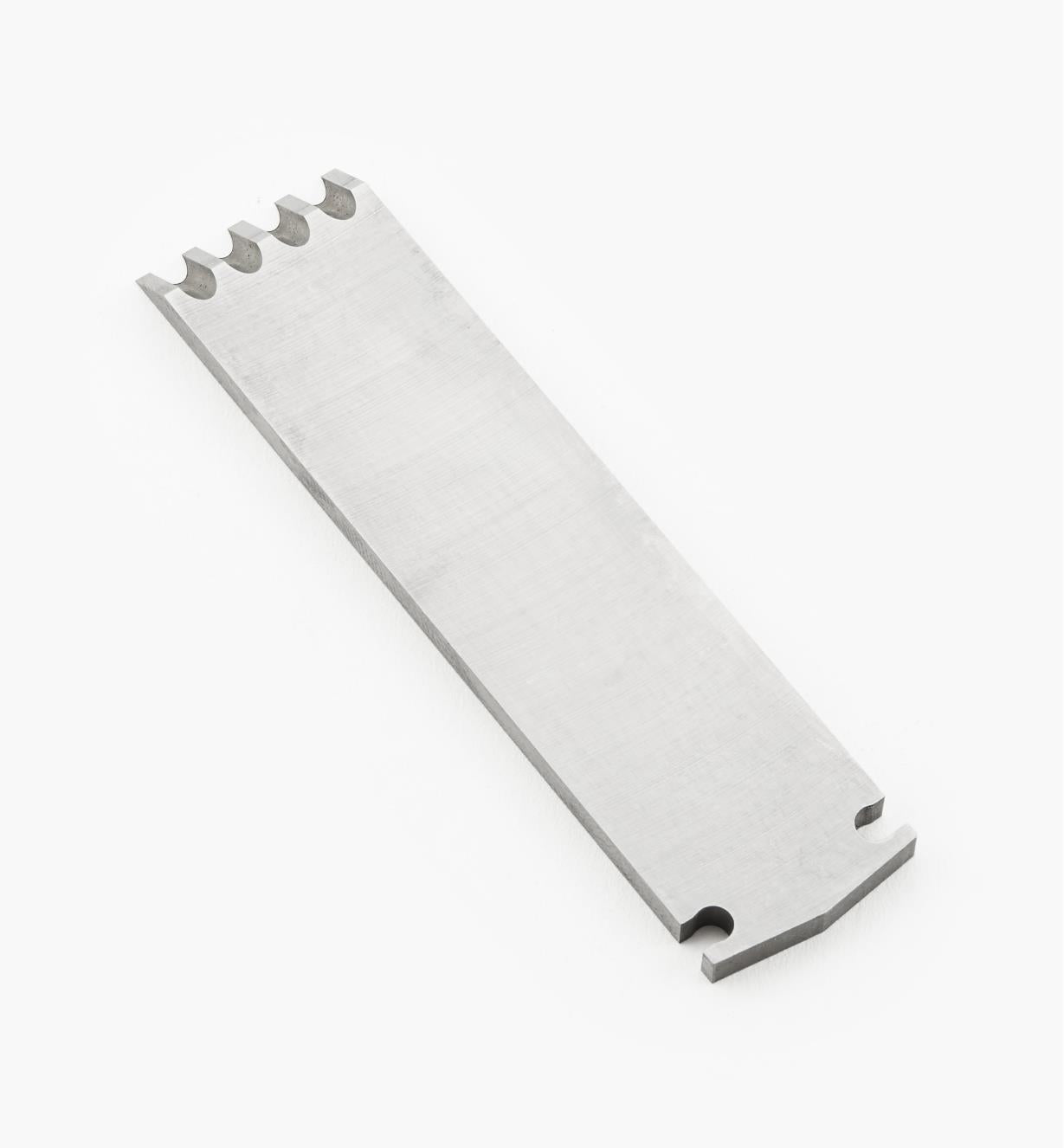

For use with the Veritas combination plane, a 4-reed cutter, producing quadruple reeds with a groove or quirk on either side of each reed.

When cutting reeds, the sliding section is required to limit the depth of cut and prevent the outer edge of the blade from diving into the workpiece. For reeds that start on the edge of the workpiece (where you do not want the quirk), position the fence tangent to the outer reed.

Made of PM-V11 steel it has a 35 degree bevel angle. PM-V11 is highly resistant to dulling or damage from wear and impact. These blades can take a keen edge and hold it through extended use. PM-V11 is as easy to sharpen as A2 tool steel using water stones or other common sharpening methods. The lapped back only requires a light honing before use. It can perform right-hand or left-hand cuts, simply by changing the combination plane’s fence from one side to the other.

If you own a Veritas small plough plane or a Record 405 or Stanley 45/55, you may already have a collection of blades that you can use in the Veritas combination plane.

Tool Manufacturer: Veritas Tools (Canada)
